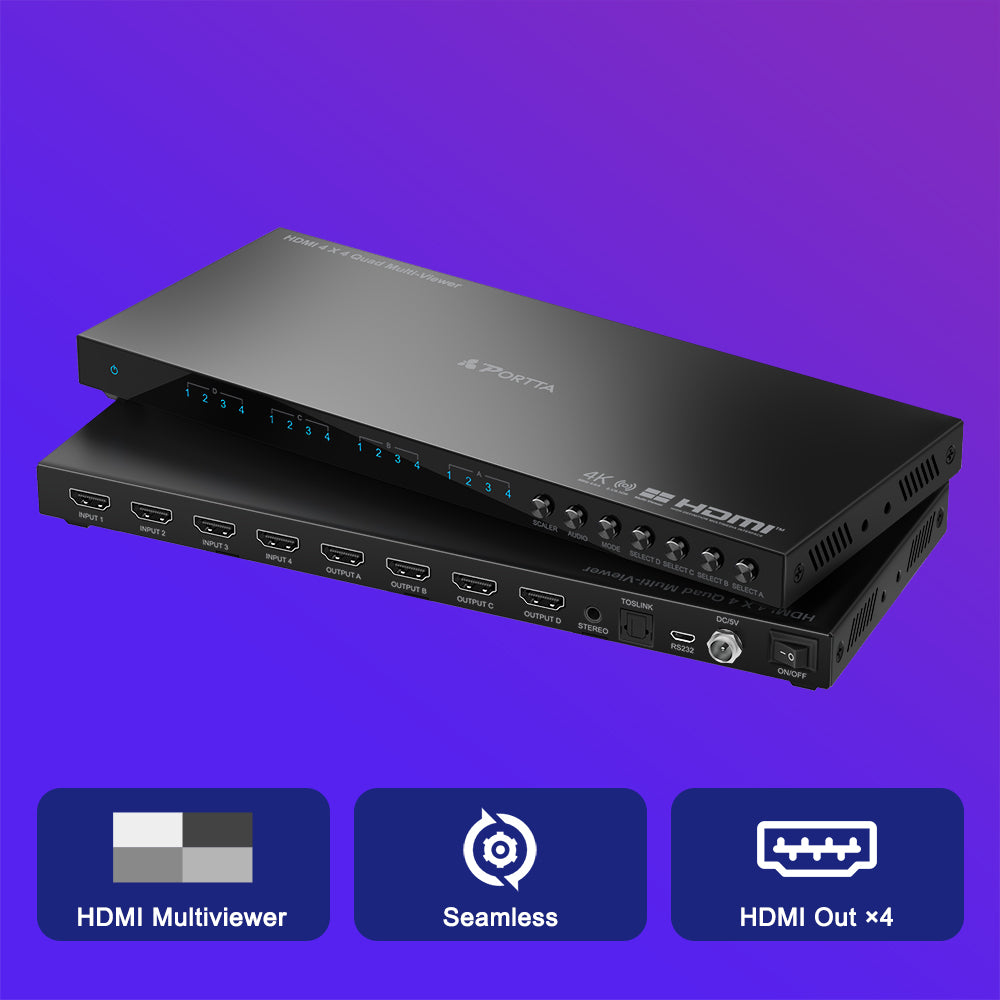

4x4 HDMI Multiviewer 4K/30Hz

SKU: QMS04-U
$199.99 USD
Free Shipping

Stock Adequate！Ready to ship

4x4 HDMI Multiviewer 4K/30Hz
$199.99 USD

Payment and security

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
View details
6 Viewing Modes

Connect 4 HDMI sources to 4 displays. Output A supports 6 multiview modes: 4 equal, dual side-by-side, dual up/down, PIP, full screen, 1 big + 3 small. Outputs B/C/D can mirror A or display any single source. Output A includes SPDIF (5.1CH) & 3.5mm (2.0CH) audio extraction.

HDMI Seamless Switcher

Output A full-screen mode supports seamless switching between 4 HDMI inputs, no 5–8s delay.

4K@30Hz Resolutions

Supports up to 4K@30Hz, backward compatible with 1080p/720p, HDCP 1.4/1.3. Output A supports scaling between 1080p, 1600p, and 4K@30Hz. Note: Ensure all sources and displays support 4K.

Broad Compatibility

Works with security cameras, PC, PS4/PS4 Pro, Blu-Ray, Chromecast, computers, and supports LPCM/AC3/DTS audio formats.

Package Includes

Main Unit x1, IR Remote x1, DC Power adapter x1, Mounting Ears x 2, User Manual x1
Display Modes 6 Modes
Input Ports 4x HDMI
Output Ports 4x HDMI, 1x Toslink, 1x 3.5mm Stereo
Control Options Manual, IR remote Control, RS232
Supported Input Resolution Up to 4K@30Hz
Audio Extractor SPDIF 5.1CH & 3.5mm 2.0CH
PIP Mode YES
